HP Compaq Tablet PC TC1100 - North America/U.S. QuickSpecs

Overview

HP Compaq Tablet PC TC1100	HP recommends Microsoft® Windows® XP Professional

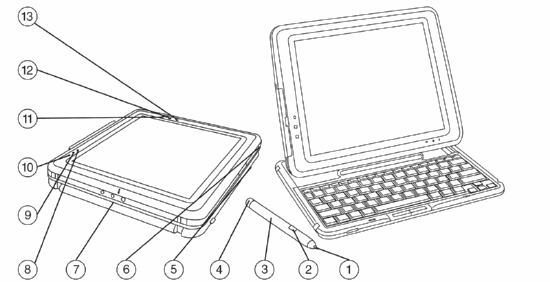

1.	Pen Tip	8.	AC Adapter Light
2.	Pen Button	9.	Battery Light
3.	Pen Barrel	10.	Wireless LAN/Bluetooth™ Activity Light
4.	Pen Tether Eyelet	11.	Tablet PC Input Panel Launch
5.	Battery Bay	12.	Journal Launch Button
6.	Power Switch	13.	Rotate Button
7.	Mobile Keyboard (attached)

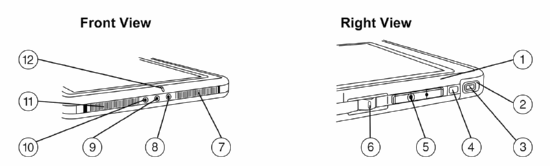

1.	Integrated Antenna	7.	Speaker (1 of 2)
2.	Power Switch	8.	Microphone Jack
3.	Power/Standby Light	9.	Headset Jack
4.	Display Toggle (F4) Button	10.	Audio-out Jack
5.	Windows Security Button (CTRL+ALT+DEL)	11.	Speaker (1 of 2)
6.	Jog Dial	12.	Microphone

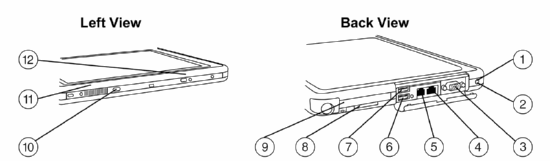

1.	AC Power Connector	7.	USB 2.0 Connector
2.	Integrated IR	8.	Secure Digital (SD) Slot
3.	External Monitor Connector	9.	PC Card Slot
4.	RJ-45 Network Jack	10.	Keyboard Connector
5.	RJ-11 Telephone Jack	11.	Antenna (not visible from outside of tablet PC)
6.	External Multibay Connector (USB 2.0)	12.	Integrated Bluetooth

At A Glance

Award-winning design
Microsoft Windows XP Tablet Edition 2005 and Windows XP Service Pack 2
Intel® Pentium® M and Celeron® M Ultra Low Voltage processors
Intel 855PM Chipset with rich graphics from NVIDIA - GeForce 4 Go 420 32MB (4X AGP)
Durable magnesium casing
Weighs 3.1 lb(1.4 kg) - with keyboard 4.0 lb(1.8 kg)
Approximately 0.8 in(2.0 cm) thin
10.4-inch XGA TFT display with sparkle-free glass
Starting with 256 MB or 512 MB of SDRAM upgradeable to 2 GB
Storage available ranging from 40 GB to 60 GB
Integrated mini PCI 56K modem plus 10/100 NIC
Type III Mini PCI integrated WLAN - 802.11b WLAN, 802.11b/g WLAN, and 802.11a/b/g WLAN options
Integrated Bluetooth™ on select models
Dedicated Secure Digital (SD) slot for removable media
Integrated IR
Battery-free, pressure sensitive pen for the ultimate writing experience (application must support pressure sensitivity)
Additional HP Security Lock Slot

What's Special

Flexible design with great performance!
Ultra-light weight and portable
Warm swap battery support
Innovative keyboard attachment
Docking with or without keyboard
Easy transitions with multi-monitor docking profiles
Magnesium alloy case and high quality digital pen with tether

Standard Features

Processor and Chipset	Intel Pentium M 753* (Ultra Low Voltage 1.2-GHz processor, 2-MB cache and 400-MHz Front Side Bus)
	Intel Pentium M 733* (Ultra Low Voltage 1.1-GHz processor, 2-MB cache and 400-MHz Front Side Bus)
	Intel Celeron M 373* (Ultra Low Voltage 1.0-GHz speed, 512-KB cache, 400-MHz front side bus)
	Intel 855PM chipset
	NOTE: Not available in all regions. *NOTE: Intel's numbering is not a measurement of higher performance.

Operating System	Pre-installed	Microsoft Windows XP Tablet Edition 2005 and Windows XP Service Pack 2

Display	Internal	10.4-inch color TFT XGA with 1024 x 768 resolution (up to 16.7M colors internal) NOTE: All products have at least 100 degree wide viewing angle. SKUs available with 160- or 100-degree viewing angle.
	External	Up to 32-bit per pixel color depth Supports 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, or 1600 x 1200 resolutions up to 100-Hz refresh rate, dependent upon monitor capability, and resolution and color depth settings

Memory	Standard 256- or 512-MB (333-MHz) SDRAM on select models
	Maximum 2-GB (333-MHz) SDRAM
	NOTE: Memory is upgradeable to 2 GB with 1 GB (333-MHz) DRAM in each memory slot. One memory slot is available for user configuration. The other slot is factory configured or can be upgraded through an HP authorized service provider.
	NOTE: Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility.

Graphics	NVIDIA GeForce 4 Go 420 with 32MB (4X APG)

Audio	16-bit stereo sound 2 stereo speakers Headphone out, microphone jack, and headset jack

Communications	Type III Mini PCI integrated WLAN - 802.11b WLAN, 802.11b/g WLAN, and 802.11a/b/g WLAN options
	Internal MDC 56K modem
	Internal 10/100 NIC
	Integrated Bluetooth (on select models)
	NOTE: Designed only to allow faster downloads from high speed compliant sources. Maximum achievable download transmission rates currently do not reach 56 KB/s, and will vary with line conditions.
	NOTE: Communication availability is subject to country regulatory approval.

Command Controls Buttons	The tablet PC comes with Command Control Buttons designed to increase customer productivity by providing one-touch access to rotate screen, favorite Internet destinations, files, or applications.
	3 programmable pen activated buttons (on top front panel) 3 programmable side buttons (Qmenu, Esc, and Tab commands) 2 additional specific function buttons (Windows security (Ctrl+Alt+Del) and Display toggle)

Keyboard	95% of full-sized 101-key compatible keyboard with isolated, inverted-T cursor control keys, and right-control key
	NOTE: A USB Keyboard is required to unbundle software and edit BIOS settings and may be required to install software.

Pointing Device	Battery-free digital pen with tether (one-year warranty) Detachable keyboard with pointstick
	NOTE: Handwriting recognition software is available in Microsoft Windows XP Tablet PC Edition.

PC Card Slots	One Type II PC Card Slot that supports both 32-bit CardBus and 16-bit PCMCIA Cards

Removable Media	One Secured Digital (SD) slot

Storage	Internal Hard Drive	40-GB (4200 rpm) or 40-GB, 60-GB (5400 rpm) SMART Hard Drives
	NOTE: External MultiBay or Tablet PC Docking Station required for MultiBay drives.

Multimedia	Integrated 16-bit Sound Blaster Pro-compatible stereo audio 2 Integrated stereo speakers and microphone Stereo Headphone-out Mono Headphone-out/Microphone in Software MPEG1 support
	DVD movie playback software available with DVD-ROM Drive with DVD movie playback DVD/CD-RW Combo Drive DVD+RW Drive
	NOTE: Voice recognition software available in Microsoft Windows XP Tablet PC Edition. An external boom microphone is recommended for voice recognition.

Interfaces	PC Card Slot	1, Type II
	Secured Digital (SD) Slot	1 removable media (not SDIO)
	External Monitor/Projector	1 Analog VGA
	Stereo Headphone	1, 3.5 mm stereo headphone jack
	Mono Headphone/ Microphone	1, 2.5 mm headset jack
	Stereo Microphone in	1, 3.5 mm microphone jack
	Modem	1 RJ-11
	NIC	1 RJ-45
	USB 2.0 Port	2, 1 with support for External MultiBay
	LED Status Indicators	3 (Power connection, battery charge, and wireless active)
	AC Power	1
	Fast Infra-red (VFIR)	1

Security	Setup Password with pen support Power-On Password with pen support DriveLock – requires password to access hard drive Enabled by PC Card options BIOS WLAN lock – prevents the replacement with unauthorized WLAN cards 2 HP Security locks – physically secure unit while in tablet, docking, or notebook modes

Software	Pre-installed Software	HP Mobile Printing for Notebooks HP Help and Support (XP Only) Safety and Comfort Guide Adobe Acrobat® Reader v. 5.10 Microsoft Reader v. 2.5 Zinio Reader v.1.4 Sun Java 1.4 Windows Media Player 9 for XP HP Tablet PC Tour Intervideo WinDVD Playback Software v. 4 (Pre-loaded)
	Recommended software/services	Availability of recommended software applications or services may vary by region and may require additional purchase and/or subscription FranklinCovey PlanPlus (30 day trial period) MindJet MindManager 2002 for Tablet PC (21 day trial period) Alias SketchBook Pro (15 day trial period) Zinio (see Digital Magazine icon on Tablet PC desktop for more information) ScanSoft Omniform Filler 5.1 and Dragon Naturally Speaking Standard Edition 7.1 (available as a special configuration)
	Additional software available through the web	HP Client Manager Software HP ProtectTools Smart Card Security Manager QuickLook for the HP Tablet PC TC1100 series
	*NOTE: Software is loaded on the hard drive and must be installed by running the Software Setup utility.

System Recovery	Each unit is shipped with a recovery CD kit containing Operating System Recovery and Driver/Application Recovery CDs. These CDs allow users to either recover or repair the tablet's operating system and select drivers without losing personal data. The Operating System CD also provides the option of reinstalling the operating system software provided with the tablet.

Power Supply	65W External AC Adapter

Battery	40W/Hr internal main rechargeable Lithium-Ion battery (one-year warranty)
	Bridge battery – Allows user to swap main battery with the system in standby mode
	The HP Compaq Tablet PC TC1100 6-cell primary Lithium-Ion battery provides up to 4.5 hours of battery life.
	NOTE: Actual results may vary with product model, configuration, and individual usage. Hewlett-Packard testing of a HP Compaq TC1100 with an Intel Pentium M processor 733 1.1 GHz CPU, Windows XP Tablet Edition, 10.4-inch XGA LCD, 512-MB RAM, 40-GB HDD, 6-cell Lithium-Ion battery, and NIC/modem, achieved an overall Business Winstone® 2002 BatteryMark score of 4h 38m Business Winstone 2002 BatteryMark Version 1.0 units. Winstone® is a registered trademark and BatteryMark™ is a trademark of Ziff Davis Publishing Holdings Inc. in the U.S. and other countries. Copyright 2002 Ziff Davis Media Inc. All Rights Reserved. System parameters followed test recommendations: panel brightness 50%, power management scheme – Laptop/Portable, hard drive, standby and video timers set to never, not external devices connected and all wireless turned off.
	Battery Re-Charge Time	System in OFF mode or Standby	3 hours
		System ON (depending on system power consumption)	3-5 hours

Power Conservation	Instant-on via Standby Hibernation ACPI compliant

MultiBay Devices (with optional External MultiBay or Docking Station)	Under Microsoft Windows XP Tablet PC Edition, MultiBay devices may be hot swapped. Writeable drives should only be swapped with power off. The Common MultiBay devices are compatible across TC1000 and TC1100 tablets, and multiple business notebook platforms enabling a lower total cost of ownership.

Wireless Devices	The HP tablet TC1100 supports a range of secure, integrated wireless LAN options featuring support for the latest industry standards. Integrated Bluetooth is also an option and can be combined with any one of the supported wireless LAN options.
	All integrated wireless LAN options	Wi-Fi certified Cisco Compatible Extensions support Wired Equivalent Privacy (WEP) support up to 128bit keys Wi-Fi Protected Access (WPA) support 802.1x standards support including EAP-TLS, Protected EAP (PEAP) and Cisco-EAP (LEAP) Dual antennas integrated in the display enclosure
	HP W500 802.11a/b/g	Integrated support for 802.11a, b and g Up to 54mbps throughput performance Advanced Encryption Standard (AES) support
	Intel PRO/Wireless 2915ABG 802.11 a/b/g wireless LAN	Intel® Centrino™ mobile technology Integrated support for 802.11a/b/g Up to 54mbps throughput performance
	Intel PRO/Wireless 2200BG 802.11b/g wireless LAN	Intel® Centrino™ mobile technology Integrated support for 802.11b, g Up to 54mbps throughput performance
	Intel PRO/Wireless 2100 802.11b wireless LAN	Intel® Centrino™ mobile technology Integrated support for 802.11b Up to 11mbps throughput performance
	Integrated Bluetooth	Designed to the Bluetooth v1.1 specification

Docking	The HP Tablet PC Docking Station provides simple and convenient port management MultiBay drives. Features include NIC pass through, four USB 2.0 including 1 Powered External USB MultiBay connector, VGA, line in/line out, and MutliBay slot. The docking solutions are compatible across TC1000 and TC1100 tablets enabling a lower total cost of ownership.

Service and Support	HP Services includes a One-Year or Three-year, Worldwide Limited Warranty, pick-up or carry-in (in select countries) and toll-free 7 x 24 hardware technical phone support. Battery and digital pen carry a one-year warranty.
	NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.

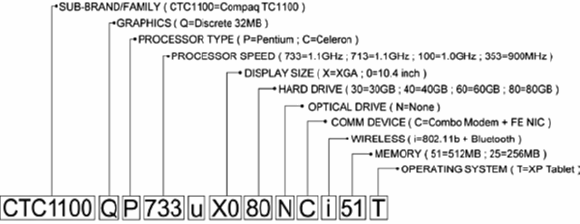

The Etymology of a Model name:

CTC1100QP120X040NCf51T PZ096UA#ABA (Intel® Centrino™ Mobile Technology)	CPU	Intel Pentium M 753* (Ultra Low Voltage 1.2-GHz processor, 2-MB cache and 400-MHz Front Side Bus) *NOTE: Intel's numbering is not a measurement of higher performance.
	Operating System	Microsoft Windows XP Tablet PC Edition 2005
	Display	10.4-inch color TFT XGA with 1024 x 768 resolution (160 degree viewing angle)
	Memory	Standard	512MB 333-MHz DDR SDRAM (256MB in each slot)
		Maximum	2GB, 1GB 333MHz DDR SDRAM in each slot
	Hard Drive	40GB (4200rpm)
	Discrete Video	NVIDIA - GeForce 4 Go 420 32MB (4X AGP)
	Communications	Internal MDC 56K modem, NIC 10/100 Intel Pro/Wireless WLAN 802.11b/g, Bluetooth
	Input Device	Tablet PC Pen with tether, HP Tablet PC Keyboard with Pointstick
	Battery	6-cell Lithium-Ion
	Warranty	Three year (Battery and digital pen carry a one-year warranty)

CTC1100QP120X060NCf51T PX284AA#ABA (Intel® Centrino™ Mobile Technology)	CPU	Intel Pentium M 753* (Ultra Low Voltage 1.2-GHz processor, 2-MB cache and 400-MHz Front Side Bus) *NOTE: Intel's numbering is not a measurement of higher performance.
	Operating System	Microsoft Windows XP Tablet PC Edition 2005
	Display	10.4-inch color TFT XGA with 1024 x 768 resolution (160 degree viewing angle)
	Memory	Standard	512MB 333-MHz DDR SDRAM with one open slot
		Maximum	2GB, 1GB 333MHz DDR SDRAM in each slot
	Hard Drive	60GB (5400rpm)
	Discrete Video	NVIDIA - GeForce 4 Go 420 32MB (4X AGP)
	Communications	Internal MDC 56K modem, NIC 10/100, Intel Pro/Wireless WLAN 802.11b/g, Bluetooth
	Input Device	Tablet PC Pen with tether, HP Tablet PC Keyboard with Pointstick
	Battery	6-cell Lithium-Ion
	Warranty	Three year (Battery and digital pen carry a one-year warranty)

Options

Memory	256-MB 333-MHz RAM Memory Upgrade	DC389B
	512-MB 333-MHz RAM Memory Upgrade	DC390B
	1-GB 333-MHz RAM Memory Upgrade	DC890B
	NOTE: Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility.

MultiBay Devices	DVD+RW/CD-RW Drive	DG189B
	24X Combo DVD/CD-RW Drive	DC364B
	8X DVD Drive	DC352A
	24X Max CD-ROM Drive	DC351A
	MultiBay Diskette Drive	DC362A
	NOTE: MultiBay devices may only be used in External MultiBay or Docking Station MultiBay.

MultiBay Storage	60-GB MultiBay Hard Drive (5400 rpm)	DC894A
	80-GB MultiBay Hard Drive (5400 rpm)	DC920A
	NOTE: MultiBay hard drive options may only be used in External MultiBay or Docking Station MultiBay.

Expansion Bases	Tablet PC Docking Station	DC911A#ABA
	External MultiBay	DC373B#ABA

Power	Tablet PC Lithium-Ion battery pack (internal)	DC907A

Common Power Solutions	Battery Charger (single)	DF933A#ABA
	Battery Charger (multiple)	DF932A#ABA
	65W AC Adapter	DC359A#ABA
	90W Auto Adapter	DC303B
	90W Aircraft Cables	DC899A

Input Devices	Tablet PC Mobile Keyboard	PC875A#ABA
	Tablet PC Pen with tether	DG937A
	Tablet PC Pen with eraser	DM685A
	Wireless Keyboard & Mouse	DL989A#ABA
	USB/PS2 Keyboard & Mouse	DM687A#ABA
	External Enhanced III Keyboard (carbon)	DC852A#ABA
	USB Travel Optical Mouse	F2100A
	USB/PS2 Optical Mouse	DC369A

Security	Security Cable Lock	PC766A

Communications	W500 wLAN 802.11a/b/g miniPCI Upgrade	DR469A#ABA
	Intel 802.11b/g wLAN	PF952AA#ABA

Removable Storage	USB Digital Drive with 128MB	DL702A
	SD Card Memory (128MB)	FA135A#AC3
	SD Card Memory (256MB)	FA136A#AC3
	SD Card Memory (512MB)	FA184A#AC3

Removable Storage - Floppy Drive	USB Floppy Drive	DC361B

Useful Accessories	Tablet PC Executive Workstation Portfolio	DC909A

Cases	HP Entry Value	DL617A
	Top Load Nylon	DC915A
	Sport Backpack	DG102A
	Portable Grip	DK504A
	Rugged Case	DK503A

Memory

HP Compaq Tablet PC TC1100

Standard memory plus optional memory for the Celeron model. Not all configurations shown.

Memory		Factory or HP authorized service provider configured	User configurable
Standard	256 MB	256 MB (266 MHz)	Empty
Optional	512 MB	256 MB (266 MHz)	256 MB (333 MHz)¹
Optional	768 MB	256 MB (266 MHz)	512 MB (333 MHz)²
Optional	1024 MB	512 MB (333 MHz)	512 MB (333 MHz)
Optional	1536 MB	512 MB (333 MHz)	1 GB (333 MHz)
Optional maximum	2 GB	1 GB (333 MHz)	1 GB (333 MHz)

Standard memory plus optional memory for the Pentium-M model. Not all configurations shown.

Memory		Factory or HP authorized service provider configured	User configurable
Standard	512 MB	512 MB (333 MHz)	Empty
Optional	768 MB	512 MB (333 MHz)	256 MB (333 MHz)
Optional	1024 MB	512 MB (333 MHz)	512 MB (333 MHz)
Optional	1536 MB	512 MB (333 MHz)	1 GB (333 MHz)
Optional maximum	2 GB	1 GB (333 MHz)	1 GB (333 MHz)

¹ Memory will run at 266 MHz.
² Memory will run at 266 MHz.

Technical Specifications

System Unit	Dimensions (H x W x D)	10.4-inch TFT panel display	10.8 x 8.5 x 0.8 in (27.4 x 21.6 x 2.0 cm)
	Weight	Approximate	3.1 lb (1.4 kg) Tablet PC only
	Weight	Approximate	4 lb (1.8 kg) Tablet PC with keyboard
	Stand-Alone Power Requirements	Nominal Operating Voltage	14.8 VDC
	Stand-Alone Power Requirements	Peak Operating Power	40 W
	Temperature	Operating	50° to 95° F (10° to 35° C)
	Temperature	Non-operating	-4° to 140° F (-20° to 60° C)
	Relative Humidity	Operating	10% to 90% relative humidity, non-condensing
	Relative Humidity	Non-operating	5% to 90% relative humidity, 101.6° F (38.7° C) maximum wet bulb temperature
	Shock	Operating	10 G, 11 ms, half-sine
	Shock	Non-operating	60 G, 11 ms, half-sine
	Vibration	Operating	0.5 G, 10 to 500 Hz, 0.5 Oct/Min sweep rate
	Vibration	Non-operating	1.0 G, 10 to 500 Hz, 0.5 Oct/Min sweep rate
	Maximum Altitude (unpressurized)	Operating	0 to 10,000 ft (3,048 m), (14.7 to 10.1 psia)
	Maximum Altitude (unpressurized)	Non-operating	0 to 30,000 ft (9,144 m), (14.7 to 4.4 psia)

10.4-Inch Color TFT XGA Display	Dimensions (H x W)	9.29 x 6.82 in (23.6 x 17.3 cm)
	Diagonal Size	10.4 in (26.41 cm)
	Mounting	Internal Panel Supports, Flange Mounted
	Number of Colors	Up to 16.8M
	Contrast Ratio	150:1
	Brightness	140 nits typical
	Pixel Resolution	Pitch	0.264 x 0.264 mm
		Format	1024 x 768
		Configuration	RGB stripe
	Backlight	Edge Lit
	Character Display	80 x 25
	Wide Viewing Angle	100-degree wide viewing angle or 160-degree ultra wide viewing angle, depending on configuration

Memory (optional)	Slot 1 (Factory and HP authorized service provider configurable only)	256-MB 266-MHz DDR	Standard with Celeron SKUs (may also use 333 MHz)
		256-MB 333-MHz DDR
		512-MB 333-MHz DDR	Standard with Pentium SKUs
		1-GB 333-MHz DDR
	Slot 2 (available)	256-MB 333-MHz DDR
		512-MB 333-MHz DDR
		1-GB 333-MHz DDR

External AC Adapter	Weight	0.62 lb (0.28 kg)
	Power Supply (Input)	Operating Voltage	90 to 260 VAC RMS
		Operating Current	1.7 A RMS
		Operating Frequency Range	47 to 63 Hz AC

Internal Lithium-Ion Battery Pack	Weight	0.65 lb (0.30 kg)
	Cells	6-cell Lithium-Ion
	Energy	Voltage	11.1 V
		Amp-hour capacity	3.6 Ah
		Watt-hour capacity	40 Wh
	Temperature	Operating (Charging)	32° to 104° F (0° to 40° C)
		Operating (Discharging)	14° to 122° F (-10° to 50° C)
		Non-operating	-4° to 140° F (-20° to 60° C)
	Battery Re-Charge Time	System in OFF mode or Standby	3 hours
	Battery Re-Charge Time	System ON (depending of system power consumption)	3 to 5 hours

Tablet PC Pen(s)	Pen with tether (standard)	Dimensions (Length)	5.1 in (130.1 mm)
		Weight	0.66 oz (18.7 g)
	Pen with eraser (optional)	Dimensions (Length)	5.1 in (130.1 mm)
		Weight	0.66 oz (18.7 g)

MultiBay DVD+RW/CD-RW Drive (optional)	MultiBay Drive	Dimensions (H x W x D)	0.5 x 5.21 x 4.97 in (1.27 x 13.25 x 12.61 cm)
	MultiBay Drive	Weight	0.55 lb (0.25 kg)
	Center Hole Diameter	15 mm
	Disk Diameter	12 cm/8 cm
	Disk Thickness	1.2 mm
	Track Pitch	0.74 µm
	Access Times (typical reads, including settling)	Random CD	< 175 ms
	Access Times (typical reads, including settling)	Full-Stroke CD	< 285 ms
	Audio Output Level	Line-out	0.7 Vrms
	Cache Buffer	128 KB/s (minimum)
	Data Transfer Rate (typical, including settling)	DVD+R (2X max write)	2700 KB/s
		DVD+RW (2X max write)	2700 KB/s
		CD-R (16X max write)	2400 KB/s (150 KB/s at 1X CD rate)
		CD-RW (8X max write)	1200 KB/s (150 KB/s at 1X CD rate)
		CD-ROM (24X max read)	3600 KB/s (150 KB/s at 1X CD rate)
		DVD (8X max read)	10,800 KB/s (1352 KB/s at 1X DVD rate)
		Normal PIO Mode 4 (single burst)	16.6 MB/s
	Start-up Time	< 15 seconds
	Stop Time	< 6 seconds

MultiBay DVD/CD-RW Drive (optional)	MultiBay Drive	Dimensions (H x W x D)	0.5 x 5.22 x 5.46 in (1.35 x 13.28 x 13.88 cm)
	MultiBay Drive	Weight	0.551 lb (250 g)
	Access Times (typical reads, including settling)	Random	<110 ms CD <130 ms DVD
	Access Times (typical reads, including settling)	Full-Stroke	<210 ms CD <225 ms DVD
	Max data transfer rate	24X CD-ROM	3,600 KB/s
		8X DVD	10,800 KB/s
		24X CD-R	3,600 KB/s
		24X CD-RW	3,600 KB/s
	Transfer Mode	Multiword DMA Mode 2
	Interface	EIDE
	Supported Media (read)	CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM
	Supported Media (write)	CD-R, CD-RW
	Media Capacity	4.7 GB
	Transport	Tray Loading

MultiBay CD-RW Drive (optional)	MultiBay Drive	Dimensions (H x W x D)	0.5 x 5.21 x 4.97 in (1.27 x 13.25 x 12.61 cm)
	MultiBay Drive	Weight	0.74 lb (0.34 kg)
	Center Hole Diameter	0.59 in (1.5 cm)
	Disk Diameter	12 cm/8 cm
	Disk Thickness	0.047 in (1.2 mm)
	Track Pitch	0.74 µm
	Access Times (typical reads, including settling)	Random	< 150 ms
	Access Times (typical reads, including settling)	Full-Stroke	< 225 ms
	Audio Output Level	Line-out	0.7 Vrms
	Cache Buffer	128 KB/s (minimum)
	Data Transfer Rate (typical, including settling)	Sustained (16X)	150 KB/s
		Sustained 4X CD-RW	5,520 KB/s
		Normal PIO Mode 4 (single burst)	16.6 MB/s
	Start-up Time	< 15 seconds
	Stop Time	< 6 seconds

MultiBay DVD-ROM Drive (optional)	MultiBay Drive	Dimensions (H x W x D)	0.5 x 5.21 x 4.97 in (1.27 x 13.25 x 12.61 cm)
	MultiBay Drive	Weight	0.66 lb (0.3 kg)
	Center Hole Diameter	0.59 in (1.5 cm)
	Disk Diameter	12 cm/8 cm
	Disk Thickness	0.43 in (1.09 cm)
	Track Pitch	0.74 µm
	Access Times (typical reads, including settling)	Random (typical)	< 180 ms DVD Media
		Full-Stroke (typical)	< 300 ms DVD Media
		Random (typical)	< 120 ms CD Media
		Full-Stroke (typical)	< 200 ms CD Media
	Cache Buffer	512 KB/s (minimum)
	Data Transfer Rate (typical, including settling)	Max 24X CD	3600 KB/s (150 KB/s at 1X CD rate)
		Max 8X DVD	10,800 KB/s (1352 KB/s at 1X DVD rate)
		Normal PIO Mode 4 (single burst)	16.6 MB/s
	Start-up Time	< 12 seconds
	Stop Time	< 3 seconds

MultiBay 24X CD-ROM Drive (optional)	MultiBay Drive	Dimensions (H x W x D)	0.5 x 5.21 x 4.97 in (1.27 x 13.25 x 12.61 cm)
		Weight	0.50 lb (0.23 kg)
	Applicable Disk	CD-ROM (Mode 1, 2 and 3), CD-XA ready (Mode 2, Form 1 and 2), CD-I ready (Mode 2, Form 1 and 2), CD-R (read only), CD Plus, Photo CD (Single and Multi-session), CD-Extra, Video CD, CD-WO (fixed packets only), CD-Bridge
	Center Hole Diameter	0.59 in (15 mm)
	Disk Diameter	12 cm, 8 cm
	Disk Thickness	0.047 in (0.12 cm)
	Track Pitch	1.6 µm
	Access Times (typical reads, including settling)	Random	< 150 ms
		Full-Stroke	< 300 ms
	Audio Output Level	Line-out	0.7 Vrms
	Cache Buffer	128 KB
	Data Transfer Rate (typical, including settling)	Sustained (16X)	150 KB/s (sustained 1X)
		Variable	1500 to 3600 KB/s (10X to 24X)
		Normal PIO Mode 4 (single burst)	16.66 MB/s
	Start-up Time	< 8 seconds
	Stop Time	< 4 seconds

Internal MDC 56K Modem (Modem Specifications)	Modem Device Driver Name
	Data Mode Capabilities	56K modem (a-law, mu-law) V.8bis V.80 V.44, V42.bis, MNP5 (Compression) V.42 (LAPM, MNP2-4) (Error Correction) V.34 (file date: 10/96)
		Optional symbol rates: 2800, 3429 Asymmetric Symbol rates
		Synchronous primary channel data signaling rates: 33600, 31200 Automatic rate re-negotiation V.32bis V.32 V.23 V.22bis V.22 V.21 Bell 212A Bell 103J
	Fax Mode Capabilities	TIA-578-S (Class 1)
		T.30, T.4 (Group 3)
		V.17
		V.29
		V.27ter
		V.21 Channel 2
	Command Set	V.250 (Partial)
		TIA-602
		Identification: GMI, GMM, GMR
		Port control: IPR, ICF, IFC, Iirr
		Modulation: MS, MR, MA
		Error control: ES, ER, EB, ESR, ETBM
		Data compression: DS, DR
		V.251
	Power Consumption	Transfer mode: < 200 mA, maximum
	Power Consumption	Standby mode: 5 mA, nominal

Integrated 10/100 NIC	Ethernet Features	10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14) 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30) Auto-Negotiation (Automatic Speed and Duplex Selection) HP Auto-MDIX Full Duplex and Half Duplex operation at 10 and 100 Mbit/s IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
	Power Management	ACPI 1.1 compliant -- multiple power modes Situation-sensitive features reduce power consumption
	Manageability	PXE 2.0 Remote Boot Statistics Gathering (RMON, Ethernet-like MIB, Ethernet MIB (802.3x, clause 30)) Comprehensive diagnostic and configuration software suite
	NIC Device Driver Name	Broadcom 440x 10/100 Integrated Controller
	Drivers Available	Microsoft Windows XP, Windows 2000 DOS NDIS2 and ODI

HP W500 802.11a/b/g WLAN (available as a special configuration)	Wireless LAN Standards	IEEE 802 Part 11a (802.11a) IEEE 802. Part 11b (802.11b) IEEE 802. Part 11g (802.11g)
	Interoperability	Wi-Fi certified
	Frequency Band	2.4 and 5 GHz
	Data Rates	802.11a; 6,9,12,18,24,36,48,54 Mbps 802.11b; 1,2,5.5,11 Mbps 802.11g; 6,9,12,18,24,36,48,54 Mbps
	Modulation	Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM
	Security	64 and 128 bit WEP encryption Support for WiFi Protected Access (WPA) including TKIP, MIC Hardware-accelerated support for the Advanced Encryption Standard (AES; 256-bit encryption) Support for 802.1x authentication types: EAP-TLS, LEAP (Cisco), PEAP (Microsoft implementation) Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program).
	Sub-channels	Multinational support with frequency bands and channels compliant to local regulations.
	Media Access Protocol	CSMA/CA (Collision Avoidance) with ACK
	Network Architecture Models	Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
	Roaming	IEEE 802.11 compliant roaming between 802.11a and 802.11b/g access points
	Output Power	802.11b: 17 dBM (typical) 802.11a/g: 15 dBM (typical)
	Power Consumption	Transmit: 2.0 W (max) Receive: 1.5 W (max) Sleep mode: 20 mW (max)
	Power Management	ACPI compliant power management 802.11 Compliant Power Saving Mode Power Saving Mode selectable through the configuration utility
	Receiver Sensitivity*	54 Mbps: -70 dBm to 1 Mbps: -90 dbm
	Antenna type	High efficiency dual band antenna with polarization diversity, mounted in the display enclosure
	Range	802.11a - Typical	500 feet - Outdoors Open Area 150 feet - Indoor, Office-environment
		802.11 b - Typical	1200 feet - Outdoor Open Area 300 feet - Indoor, Office environment
		802.11 g - Typical	1000 feet - Outdoor Open Area 200 feet - Indoor, Office environment
	Form Factor	MiniPCI Type IIIA
	Weight	0.036 lb (16.5 gm)
	Dimensions	0.19 x 2.00 x 2.35 in (4.8 x 50.95 x 59.75 mm)
	Operating Voltage	3.3v
	Temperature	Operating Non-operating	32° to 122° F (0° to 50° C) -14° to 158° F (-10 to 70° C)
	Humidity	Operating Non-operating	10 to 90% 5 to 95%
	Altitude	Operating Non-operating	0 to 15,000 ft (4,572 m) 0 to 40,000 ft (12,192 m)
	Configuration Utility	Choice of Configuration Utility:
		Atheros Client Utility (required for Cisco Compatible Extensions support) Microsoft Windows XP Wireless Zero Configuration Utility
		NOTE: may also be compatible with certain third party software supplicants
	LED Activity	LED Off - WLAN and Bluetooth Radio OFF; Solid Green LED - WLAN or Bluetooth Radio ON (please refer to your Tablet PC documentation to determine whether WLAN or Bluetooth is activated)
	*Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation)

Intel Pro/Wireless 2915ABG 802.11a/b/g WLAN	Wireless LAN Standards	IEEE 802.11a IEEE 802.11b IEEE 802. 11g
	Interoperability	Wi-Fi certified (details available at http://www.hp.com/go/WLAN)
	Frequency Band	2.4 and 5 GHz
	Data Rates	802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12,18, 24, 36, 48, 54 Mbps
	Modulation	Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM
	Security	Supports 64- and 128-bit WEP, WPA, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST. Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program).
	Sub-channels	Multinational support with frequency bands and channels compliant to local regulations.
	Media Access Protocol	CSMA/CA (Collision Avoidance) with ACK
	Network Architecture Models	Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
	Roaming	IEEE 802.11 compliant roaming between access points.
	Output Power	+16 dBm +/- 2dB'+16 dBm +/- 2dB (for CKK) +15 dBm + 2 / -5 dB ((for OFDM; power varies by data rate)
	Power Consumption	Transmit: 1.8 Watts (max) Receive: 1.4 Watts (max) Idle mode: 100 mW, nominal
	Power Management	ACPI compliant power management 802.11 Compliant Power Saving Mode
	Receiver Sensitivity^*	54 Mbps: -72 dBm, 11 Mbps: -89 dBm , 1 Mbps: -97 dBm
	Antenna type	High efficiency dual band antenna with polarization diversity, mounted in the display enclosure
	Range (typical)	802.11a - Typical	600 ft (82.88 m) at 1 Mbps - Outdoors Open Area 150 ft (45.72 m) at 1 Mbps - Indoor, Office-environment
		802.11b - Typical	1200 ft (365.76 m)at 1 Mbps - Outdoors Open Area 300 ft (91.44 m) at 1 Mbps - Indoor, Office-environment 250 ft (76.2 m)at 54 Mbps - Indoor, Office-environment
		802.11g - Typical	1200 ft (365.76 m) at 1 Mbps - Outdoors Open Area 300 ft (91.44 m) at 1 Mbps - Indoor, Office-environment 50 ft (15.24 m)at 54 Mbps - Indoor, Office-environment
	Form Factor	MiniPCI Type IIIB
	Weight	0.026 lb (11.75 g) max
	Dimensions	0.20 x 1.75 x 2.34 in (4.9 x 44.6 x 59.8 mm)
	Operating Voltage	3.3v +/- 10%
	Temperature	Operating Non-operating	32° to 176°F (0° to 80°C) -40° to 176°F (-40° to 80°C)
	Humidity	Operating Non-operating	0 to 90% (non-condensing) 5 to 95% (non-condensing)
	Altitude	Operating Non-operating	0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

	Configuration Utility	Microsoft Windows XP Wireless Zero Configuration Utility Intel PROset for Microsoft Windows 2000 or XP
	LED Activity	LED Off - Radio OFF; Solid LED - Radio ON
	*Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

Intel Pro/Wireless 2200BG 802.11b/g WLAN	Wireless LAN Standards	IEEE 802.11b IEEE 802. 11g
	Interoperability	Wi-Fi certified (details available at http://www.hp.com/go/WLAN)
	Frequency Band	2.402 - 2.494 GHz
	Data Rates	802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12,18, 24, 36, 48, 54 Mbps
	Modulation	Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM
	Security	64 and 128 bit WEP encryption Support for WiFi Protected Access (WPA) including TKIP, MIC Support for 802.1x authentication types: EAP-TLS, LEAP (Cisco), PEAP (Microsoft implementation); more details available at http://www.hp.com/go/WLAN). Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program).
	Sub-channels	Multinational support with frequency bands and channels compliant to local regulations.
	Media Access Protocol	CSMA/CA (Collision Avoidance) with ACK
	Network Architecture Models	Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
	Roaming	IEEE 802.11 compliant roaming between access points.
	Output Power	16 ±2 dBM for CCK 11 +6/-1 dBM for OFDM (power varies by data rate) Maximum output power may vary by country according to local regulations
	Power Consumption	Transmit: 1.8 Watts (max) Receive: 1.0 Watts (max) Idle mode: 75mW, nominal
	Power Management	ACPI compliant power management 802.11 Compliant Power Saving Mode
	Receiver Sensitivity^*	54 Mbps: -72 dBm, 11 Mbps: -84 dBm , 1 Mbps: -94 dBm
	Antenna type	High efficiency dual band antenna with polarization diversity, mounted in the display enclosure
	Range (typical)	Outdoor	1200 feet at 1 Mbps 250 feet at 54 Mbps
		Indoor	300 feet at 1 Mbps 50 feet at 54 Mbps
	Form Factor	MiniPCI Type IIIB
	Weight	0.026 lb (11.75 g) max
	Dimensions	0.20 x 1.75 x 2.34 in (4.9 x 44.6 x 59.8 mm)
	Operating Voltage	3.3 V
	Temperature	Operating Non-operating	32° to 158° F (0° to 70° C) -40° to 176° F (-40° to 80° C)
	Humidity	Operating Non-operating	0 to 90% (non-condensing) 5 to 95% (non-condensing)
	Altitude	Operating Non-operating	0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

	Configuration Utility	Choice of Configuration Utility: Intel PROset for Microsoft Windows 2000 or XP (required for Cisco Compatible Extensions support) Microsoft Windows XP Wireless Zero Configuration Utility NOTE: May also be compatible with certain third party software supplicants.
	LED Activity	LED Off - Radio OFF; Solid LED - Radio ON
	*Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

Intel Pro/Wireless 2100 802.11b WLAN	Wireless LAN Standards	IEEE 802. Part 11b (802.11b)
	Interoperability	Wi-Fi certified
	Frequency Band	2.4 GHz
	Data Rates	802.11b; 1,2,5.5,11 Mbps
	Modulation	Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK
	Security	64 and 128 bit WEP encryption Support for WiFi Protected Access (WPA) including TKIP, MIC Support for 802.1x authentication types: EAP-TLS, LEAP (Cisco), PEAP (Microsoft implementation) Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program).
	Sub-channels	Multinational support with frequency bands and channels compliant to local regulations.
	Media Access Protocol	CSMA/CA (Collision Avoidance) with ACK
	Network Architecture Models	Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
	Roaming	IEEE 802.11 compliant roaming between 802.11b access points
	Output Power	16 dBM (typical)
	Power Consumption	Transmit: 2.0 W (maximum) Receive: 1.5 W (maximum) Sleep mode: 200 mW, nominal
	Power Management	ACPI compliant power management 802.11 Compliant Power Saving Mode
	Receiver Sensitivity^*	11 Mbps: -82 dBm to 1 Mbps: -89 dBm
	Antenna type	High efficiency dual band antenna with polarization diversity, mounted in the display enclosure
	Range	802.11b - Typical	1200 feet (365.85 m) - Outdoor Open Area 300 feet (91.46 m) - Indoor, Office environment
	Form Factor	MiniPCI Type IIIB
	Weight	0.026 lb (11.75 gm) (maximum)
	Dimensions	0.20 x 1.75 x 2.34 in (4.9 x 44.6 x 59.8 mm)
	Operating Voltage	3.3 V
	Temperature	Operating Non-operating	32° to 158° F (0° to 70° C) -40° to 176° F (-40° to 80° C)
	Humidity	Operating Non-operating	0 to 90% (non-condensing) 5 to 95% (non-condensing)
	Altitude	Operating Non-operating	0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

	Configuration Utility	Choice of Configuration Utility:
		Intel ProSet (required for Cisco Compatible Extensions support) Microsoft Windows XP Wireless Zero Configuration Utility
		NOTE: May also be compatible with certain third party software supplicants.
	LED Activity	LED Off - Radio OFF; Solid LED - Radio ON
	*Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation)

Bluetooth by HP	Form Factor	Integrated USB module
	Bluetooth	1.1 Compliant
	Dimensions	26 x 14 x 5.7 mm
	Temperature	Operating	-4° to 158° F (-20° to 70° C)
		Non-operating	-40° to 176° F (-40° to 80° C)
	Humidity	10 to 90% operating
		5 to 95% non operating
	Altitude	Operating	15,000 ft (4572 m)
		Non-operating	40,000 ft (12,192 m)
	Plug and Play	USB 1.1 compliant
		Microsoft Windows Plug and Play compliant
	Frequency Band	2402 to 2480 MHz
	Number of Available Channels	79 (1 MHz) available channels
	Data Rates and throughput	1 Mbps
		Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
		Asynchronous Connection Less links 723.2 kbps/57.6 kbps asymmetric or 433.9 kbps symmetric
	Antenna type	Internally integrated within module
	Range	33 ft (10 m)
	Software Stack Supported	User may choose:
		Microsoft User Interface (Profiles supported: HID, DUN, HCRP)
		Widcomm User Interface (see profile support below)
	Profile Support	General Access Profile
		Service Discovery Application Profile
		Serial Port Profile
		Generic Object Exchange Profile
		File Transfer Profile
		Synchronization Profile
		Dial-Up Networking Profile
		LAN Access Profile
		Object Push Profile
		Hard Copy Cable Replacement Profile
		Personal Area Networking Profile
		Human Interface Device Profile

Usage Models	Service Discovery (determine what Bluetooth devices are within range and support authorization)
	Synchronization: PDAs to PCs Portable to Desktop
	File Transfer: File and directory browsing and navigation on another Bluetooth device. File copying Object manipulation - including add, delete, create new folders etc. Wireless link to Corporate LAN using several Bluetooth devices sharing the same
	Access Point: Corporate email, network neighborhood, access to LAN applications, file transfer, ftp, Internet browsing, etc, using TCP/IP Wireless link to WAN thru cell phone Agnostic to WAN technology Send/receive SMS messages Wireless link to Printer Adhoc peer to peer networking (two computers) or Personal Area Networking (PAN) using NDIS (< 7 computers) Adhoc Bluetooth Pico-networking (point to multi-point) Object Push - Business card or appointment exchange Human Interface Devices Wirelessly interface to notebook with mouse, keyboard, etc Printing Wirelessly print to Bluetooth enabled printers
Transmit Power	-6dBm to 4 dBm (Bluetooth Class II)
Receive Sensitivity	Better than -80 dBM at 0.1 % raw bit error rate
Link Topology	Point to Point, Multipoint Pico Nets up to 7 slaves
Security	Full support of Bluetooth Security Provisions
Network Architecture Models	Ad-hoc (Peer to Peer)
	Infrastructure (Access Points Required)
Power Requirement	Peak	< 270 mW
Power Management	Microsoft Windows ACPI, and USB Bus Support
	Wireless EAB On/Off
	Software On/Off control
	Self configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff
Protocols Supported	TCP/IP
	IPX/SPX
	UDP
LED Activity	Solid Green LED - Wireless Bluetooth or WLAN On LED Off - Wireless Bluetooth and WLAN Power Off (please refer to your Tablet PC documentation to determine whether WLAN or Bluetooth is activated)
Certifications	All necessary regulatory approvals for countries we support including
	FCC (47 CFR) Part 15C, Section 15.247 & 15.249
	ETS 300 328, ETS 300 826
	Low Voltage Directive IEC950
	UL, CSA, and CE Mark

The information contained herein is subject to change without notice. Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. All other product names mentioned herein may be trademarks of their respective companies.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

DA-11755 - U.S. - Version 33 - August 5, 2005
