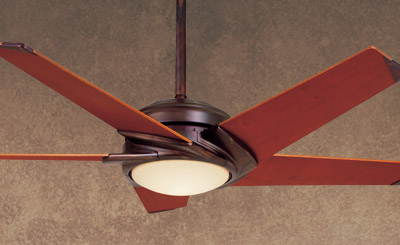

3232T Weathered Copper motor shown with B32DC Dark Cherry blades

View the fan: » Architectural White » Glossy Black » Brushed Nickel » Graphite » Snow White » Weathered Copper

In the spirit of contemporary design, form follows function in fluid contours, swept wing blades, and integrated halogen lighting. This original classic appeals to many tastes because of its timeless beauty and selection of finish options.		3268A Graphite motor shown with B32-68 Graphite blades and STLHC-68 no-light cap		3272T Architectural White motor shown with B32-MP Maple blades [Enlarge]
		3245T Brushed Nickel motor shown with B32-DC Dark Cherry blades [Enlarge]		3211T Snow White motor with B32-11 Hi Gloss Snow White blades[Enlarge]

Stealth Features: XLP-2000™ motor / Lifetime motor warranty 53" blade span 14° blade pitch Exclusive blades sold separately 100 watt integrated halogen downlight (bulb included) No-light cap option available (STLHC-xx) Low Ceiling Adapter (LCA) is not compatible Requires additional hanging support (Included)

[Info]	[Info]	STEALTH CONTROLS

STEALTH FAN FINISHES (Click to View Actual Fans) Part Number Control Technology: T = Inteli-Touch • A = Advan-Touch
Brushed Nickel (3245 T/A) Snow White (3211 T/A) Architectural White (3272 T/A)	Glossy Black (3212 T/A) Graphite (3268 T/A) Weathered Copper (3232 T/A)

STEALTH BLADE FINISHES (Click to enlarge)
Architectural White (B32-72) Black [Hi-Gloss] (B32-12) Graphite (B32-68) Bleached Oak (B32-BO) Classic White (B32-9)	Dark Cherry (B32-DC) Maple (B32-MP) Platinum (B32-79) Snow White [Matte] (B32-11) Teak (B32-TK)

---

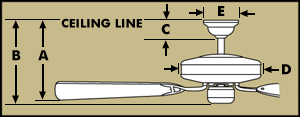

		Dimensions					Blade Sweep
	PRODUCT SPECIFICATIONS	A	B*	C	D	E	Long	Short
	Stealth	10.75"	13.25"	3"	11.5"	5.56"	53"	-

		Blade Pitch	Weight (lbs.)	Speed (RPM)	Power (Watts)	Motor Type	Tech**	Warranty (Motor)
		14°	33	25-200	31-112	Casablanca XLP2000-28mm	AT / IT	Lifetime

* Dimension B measurement includes Light Fixture and Glass ** Tech (Fan Controls): AT=Advan•Touch remote control, IT=Inteli•Touch wall control

---

VIEW CHARTS: [593K] Blade Selection [48K] Light Fixture Compatibility and Dimensions [103K] Light Fixture Finish & Bulb Specifications [108K] Product Specifications [430K] Model Number Reference [877K] Warranty & In-Home Service
	Viewing these charts requires Adobe Acrobat Reader version 4.0 or later. To download to your computer, right-click on the PDF link and select "Save Target As." Mac users hold down the Option key, then click.
